Eurocopter SA 341G Gazelle
· Country Of Origin: France
· Aircraft Crew: One pilot
· Transport Capacity: Four passengers

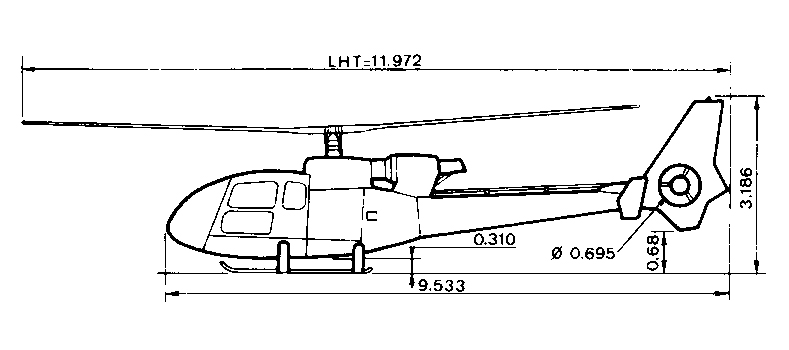

· Aircraft Dimensions:
- Length: 39 ft 3 in (11.9 m)

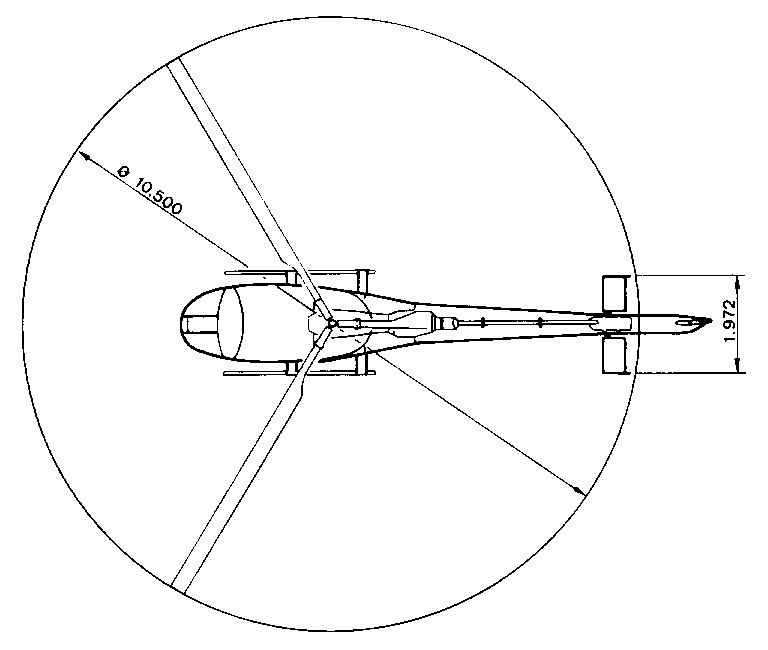

- Rotor Size: 34 ft 5 in (10.5 m)
- Height: 10 ft 2 in (3.2 m)
· Aircraft Weights:
- Empty: 2,022 lb (917 kg)
- Max T/O: 4,100 lb (1,860 kg)
- Payload: 2,078 lb (942 kg)
- Fuel quantity: 120 Gal (24 Gal Aux tank)
- Fuel types: Jet A, Kerosene
· Max Speed:
168 Kt (310 kmh)
· Range (no reserve):
361 nm (670 km);425 nm (784 km) AUX
· HIGE (max gross):
13,120 ft.
· Ceiling:
20,000 ft.
· Powerplant:
Turboméca Astazou IIIA turboshaft 590 shp (440 kW)
· Power:
590 shp (440 kW)
